DETAILS

Complete range of sizes from 10″ to 36″.

Full AMCA Class 1 Operation.

Non-overloading backward inclined (BI) welded wheels.

Aluminum wheel – (AMCA type B classification for spark resistant construction) – available as an option.

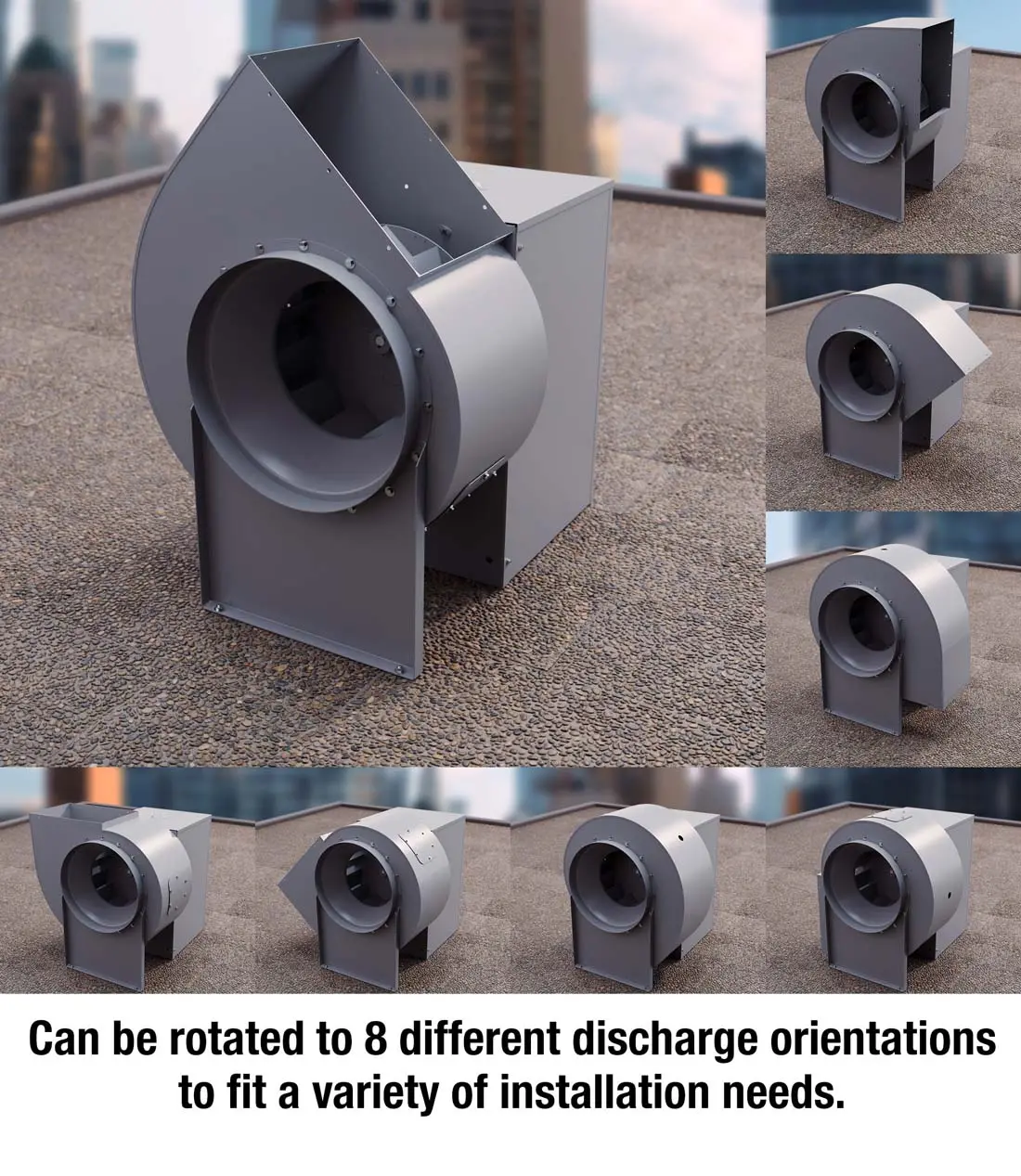

Discharge position can be field rotated to any of 8 discharge positions.

Counter clock wise rotation is standard. Clock wise available.

Outlet flanges on models BI-24 to BI-36.

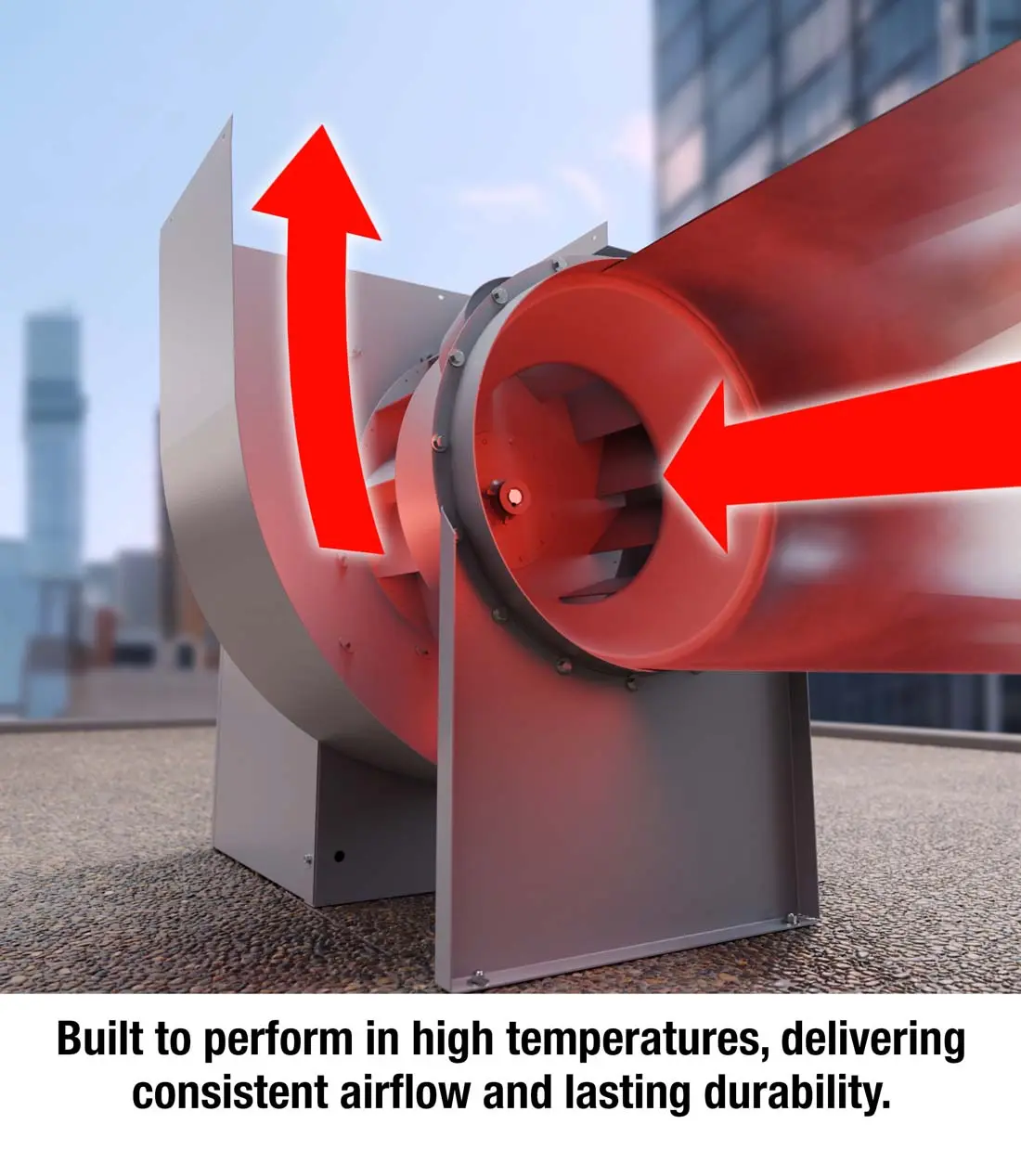

Temperature Ratings – without a heat slinger 250º F with a heat slinger, steel wheel 400º F, aluminum wheel 300º F.

Motor access from 3 sides.

Sloped motor base for ease of motor installation.

Vented motor and drive compartment cover, with handles, for safety & weather protection.

16 gauge or heavier blower housing.

Heavy duty pillow block ball bearings.
